Sanding Equipment Drum Sander 26" Shop Fox Double Drum Sander Wood - $2,000 (Rutherford County/Upstate)
QR Code Link to This Post

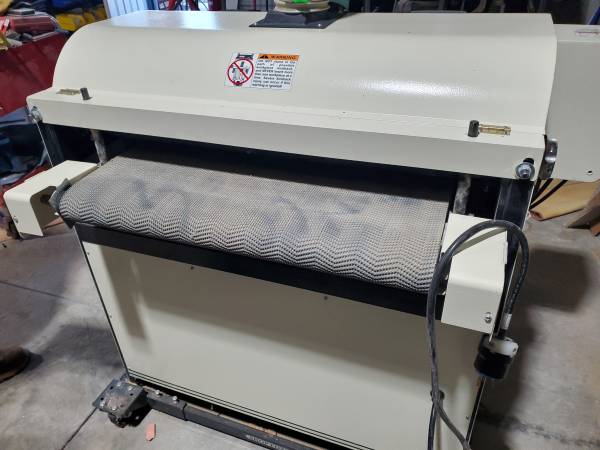

Shop Fox W1678 26" 5 HP Drum Sander
ALSO INCLUDED: Shop Fox D2058A Adjustable Mobile Base, Large
PLEASE READ: CASH ONLY - LOCAL PICKUP ONLY - NO SHIPPING (posted by Preston)
Power through sanding tasks with efficiency.
Leave handheld sanders behind! The Shop Fox W1678 26" 5 HP Drum Sander tackles large sanding projects with speed and precision. Ideal for professional shops and high-volume woodworking, this powerhouse sander boasts:
Exceptional Capacity: Sand panels up to 26" wide and 4" thick in a single pass, maximizing productivity.
Dual Drums for Efficiency: Rough sand and finish sand simultaneously with two independently controlled drums, each using different grits.
Variable-Speed Control: Fine-tune the sanding process by adjusting the feed rate from 0 to 20 feet per minute for optimal results on various materials.

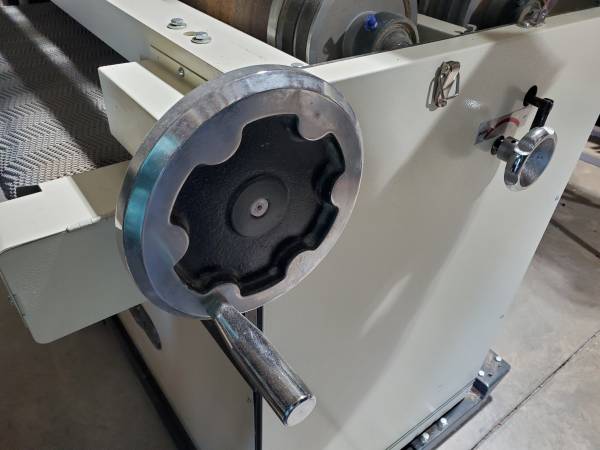

Micro-Adjustable Rear Drum: Ensures consistent sanding thickness across your entire workpiece.
The hook-and-loop sandpaper length needed is 3"-wide by 195"-long. A wide selection of replacement sanding rolls, from coarse grits for fast material removal to ultra-fine grits for a flawless, high-grit finish.
The W1678 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to maintain your sander.
Made in an ISO 9001 factory
SPECIFICATIONS:
Sanding motor: 5 HP, 220V, single-phase, 25A
Conveyor motor: 1/3 HP, 2A
Drum surface speed: 2300 FPM
Feed rates: Variable, 0–20 FPM
Conveyor belt size: 26-1/8" x 74"
Max. stock dimensions: 26" W x 4-1/4" H
Min. board length: 9"
Min. board thickness: 1/8"
Sanding drums: Two 6", aluminum
Sandpaper size: 3" x 195" hook & loop
Dust ports: Two 4"
Footprint: 36" W x 23-3/4"
Overall dimensions: 50" W x 37" D x 44-1/2" H
Approximate shipping weight: 546 lbs.
FEATURES
Dual drum with hook & loop sandpaper attachment
Powder-coated finish
All ball-bearing construction
Micro-adjustable rear drum
